Technical Drawing

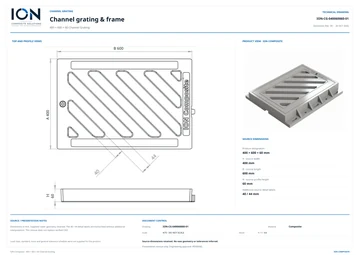

400 × 600 × 60 Channel GratingRequest Technical DrawingFull technical drawings are supplied by ION on request. This preview is not for production use.
GRP Drain Grating
400 × 600 × 60 Channel Grating
Rectangular channel grating and frame with diagonal drainage openings.
GRPNominal: 400 × 600 × 60 mm
Request a quote for this model
Model data
Technical dimensions.
Nominal designations and source dimension labels are shown separately. All dimensions below retain the supplied values and tolerances.
| Material family | GRP |
|---|---|
| Nominal designation · A / B / H | 400 × 600 × 60 mm |
| Additional source detail labels | 40 / 44 mm |
| Load classification | Unconfirmed — review the source markings and engineering notes |
| Engineering approval | Pending — not approved for production |
Engineering review notes
The 40 / 44 mm detail values are retained as source labels without additional interpretation.
Load class, mass, standard, tolerance schedule and detailed resin specification were not supplied.
GRP identifies the product family. Detailed resin specification and independent certification have not been verified.
ION technical drawings
Small drawing previews.
Low-resolution previews for reference only. Read the dimensions in the table above and request the complete technical drawing from ION.
