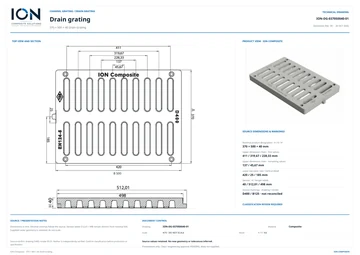

Technical Drawing
370 × 500 × 40 Drain GratingRequest Technical DrawingFull technical drawings are supplied by ION on request. This preview is not for production use.
GRP Drain Grating
370 × 500 × 40 Drain Grating
Rectangular drain grating with twenty openings in two rows, four corner fixing holes and an end tab.
GRPNominal: 370 × 500 × 40 mm
Request a quote for this model
Model data
Technical dimensions.
Nominal designations and source dimension labels are shown separately. All dimensions below retain the supplied values and tolerances.
| Material family | GRP |
|---|---|
| Nominal designation · A / B / H | 370 × 500 × 40 mm |
| Upper chain · first values | 411 / 319,67 / 228,33 mm |
| Upper chain · remaining values | 137 / 45,67 mm |
| Lower top view / tab / vertical label | 420 / 25 / 185 mm |
| Section · H / length labels | 40 / 512,01 / 498 mm |
| Source markings · drawing / render | D400 / B125 · not reconciled |
| Load classification | Unconfirmed — review the source markings and engineering notes |
| Engineering approval | Pending — not approved for production |
Engineering review notes
The source drawing shows D400 but the source render shows B125. Neither is independently verified; confirm classification before specification.
Decimal commas follow the source. Section labels 512,01 / 498 remain distinct from nominal 500. Mass and tolerances were not supplied.
GRP identifies the product family. Detailed resin specification and independent certification have not been verified.
ION technical drawings
Small drawing previews.
Low-resolution previews for reference only. Read the dimensions in the table above and request the complete technical drawing from ION.
